Wang LOCI-2 Circuit Board 1404A

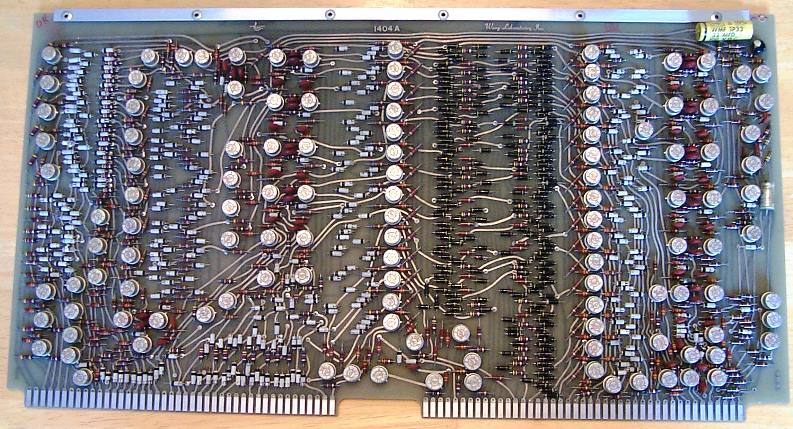

The 1404A board contains the main clock generation logic, and a sixteen-step timing counter and gating for generating the timing signals that control the calculator. The board also contains the sequencer that runs the logarithm algorithm, along with a 9's-complement circuit for the L-register, used when subtracting a number from the L register.
